The ECM-P017100 fault code in the Volvo XC60 T6 and T8 indicates a fuel mixture that is too lean and may be caused by leaks in the supercharger, turbo or catalytic converter. This fault requires a thorough diagnosis (systematically tracing the cause of the fault). This way you determine the exact cause and avoid costly replacement of healthy components. In this article you can read which steps you can take to solve the problem effectively.

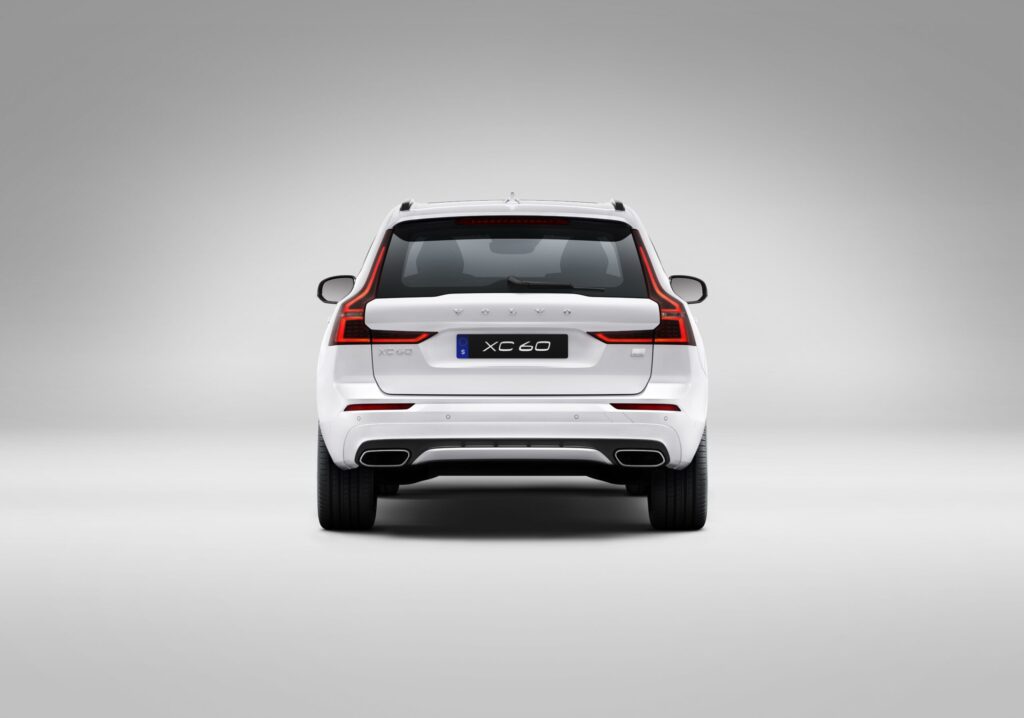

The Volvo XC60 T6 and T8 are powerful plug-in hybrids with a complex drivetrain consisting of a 2.0-litre petrol engine, an electric motor and advanced control systems. The T8 version delivers a combined output of 455 hp and 709 Nm. This technical complexity makes the car susceptible to specific faults in the engine management system. The ECM, or Engine Control Module, is the control unit that monitors and manages all engine functions.
When the ECM registers a fault code, you will often see a warning light appear on the dashboard. Some owners experience loss of power, a limp-home mode or even a temporary deactivation of the hybrid system. These symptoms can be alarming, but in themselves tell you little about the underlying cause.
What does the ECM-P017100 fault code mean?
The ECM-P017100 fault code stands for a fuel-air mixture that is too lean in the combustion chamber. This means that the engine is getting too much air and too little fuel, which disrupts combustion efficiency and affects performance. The engine computer detects this deviation via sensors in the exhaust system and then activates a warning.
In the XC60 T6 and T8 this fault occurs regularly. The cause is often leaks in components that supply air or operate under pressure. The three most common sources are:
- Leak in the supercharger, allowing unfiltered air to enter the system
- Defective turbo with wear to the seals or bearings
- Damaged catalytic converter that blocks or otherwise disrupts the exhaust system
These components operate under high pressure and temperature, which makes them prone to wear. A leak disrupts the precise balance between air and fuel, which the ECM immediately detects.
How do you diagnose the cause of the ECM fault?
A reliable diagnosis always starts with reading the fault codes. A warning light alone does not provide enough information to determine the exact cause. Use a suitable diagnostic tool (a device for reading fault codes) or have the codes read at a garage with Volvo expertise.
After reading the fault codes, follow these steps:
- Check the 12V battery for condition and voltage; a weak auxiliary battery often causes vague faults in modern Volvos with a lot of electronics
- Visually inspect the supercharger, turbo and exhaust system for visible leaks, oil spots or damage
- Carry out a pressure test on the intake system to trace hidden leaks
- Have the catalytic converter tested for flow and back pressure; a blocked catalytic converter can cause similar symptoms
- Check all plugs and cables around the ECM and sensors for moisture, corrosion or poor connections
The order of these steps is important. Start with simple checks such as the 12V battery and connectors before replacing expensive components. Some owners report that a fault disappeared after replacing the auxiliary battery, while they first suspected an engine problem.
Common causes in the XC60 T6 and T8
In practice, most ECM faults in the XC60 T6 and T8 are related to four main causes. These are not always immediately visible and require targeted inspection.
Leak in the supercharger
The supercharger is a mechanical compressor that forces extra air into the engine for more power. With wear, the seals and connections can start to leak. This leads to a mixture that is too lean because unmeasured air enters the system. You will often recognise this by a hissing sound under load or loss of power during acceleration.
Turbo with wear or leakage
The turbo operates at high temperatures and rotational speeds. Bearings and seals can wear over time, especially if engine oil service intervals have not been followed consistently. A defective turbo may sometimes leak oil into the intake system or lose boost pressure, both of which can disturb the mixture.
Damaged or clogged catalytic converter
The catalytic converter can lose its structure due to overheating, contamination or mechanical damage. This causes back pressure in the exhaust system, which affects engine performance and can trigger fault codes. In more serious cases you will hear a rattling noise from the exhaust system, indicating that internal components have come loose.
Software and voltage issues
The XC60 T6 and T8 have complex software that controls the engine, hybrid system and battery charging system. Outdated software or voltage spikes due to a weak 12V battery can cause intermittent faults. These faults are sometimes present and sometimes not, which points to an electronic problem rather than a mechanical defect.
Which practical tips help to prevent faults?
Preventive maintenance significantly reduces the risk of ECM faults. The following measures contribute to the reliability of your XC60 T6 or T8:
- Follow the recommended engine oil intervals and use only specifications approved by Volvo
- Have the 12V battery tested regularly, especially after three years of use
- Charge the plug-in hybrid consistently; real-world tests show that a well-charged battery is not only more efficient, but also delivers smoother performance
- Periodically check all hoses and connections in the engine bay for small cracks and leaks
- Ensure current software updates via the Volvo dealer; outdated calibrations can increase susceptibility to faults
The XC60 T8 has a battery pack of 18.8 kWh, of which around 14.7 kWh is usable. Regular charging not only improves driving behaviour, but also helps the hybrid system to function optimally. With an empty battery the car is still perfectly usable, but acceleration from 0 to 100 km/h can be up to half a second slower.
What does diagnosis and repair cost?
The costs for diagnosis and repair vary greatly depending on the cause. A diagnosis with fault-code reading and visual inspection costs on average between 75 and 150 euros. The price of parts and labour varies further:
- Replacement of the 12V battery: 150 to 300 euros
- Software update: 50 to 150 euros
- Repair or replacement of supercharger: 800 to 2,000 euros
- Replacement of turbo: 1,200 to 2,500 euros
- Replacement of catalytic converter: 600 to 1,500 euros
Always start with a thorough diagnosis before agreeing to the replacement of expensive components. Some garages immediately suggest a new turbo or supercharger without first carrying out a pressure test or checking the 12V battery. This can lead to unnecessary costs if the problem lies elsewhere.
How do you recognise a reliable garage for XC60 hybrid problems?
Not every garage has the knowledge and equipment to diagnose complex hybrid faults effectively. When choosing a garage, pay attention to the following points:
- Experience with Volvo plug-in hybrids and specifically with the T6 and T8 drivetrains
- Availability of professional Volvo diagnostic software such as VIDA (Volvo’s official diagnostic software) or equivalent systems
- Willingness to diagnose step by step instead of immediately replacing expensive parts
- Transparency about costs and justification of proposed repairs with concrete test results
Ask in advance about experience with similar faults and have the diagnostic steps explained to you. A good garage takes the time to analyse the fault codes, carry out checks and involve you in the process.
Keep the XC60 well maintained and charged
The Volvo XC60 T6 and T8 are powerful and technically advanced cars that perform reliably with proper maintenance. The ECM-P017100 fault code is a common fault that is usually easy to solve with the right diagnosis. By acting preventively and being alert to symptoms, you can prevent major damage and expensive repairs.
Is your Volvo XC60 T6 or T8 suffering from the ECM-P017100 fault code and you cannot get to the bottom of it yourself? Then look for a specialist garage with experience in Volvo hybrid systems. A step-by-step diagnosis is crucial to avoid unnecessary costs and tackle the real cause effectively. Do not wait too long with a repair to prevent further engine damage.
Frequently asked questions
In the hybrid Volvo XC60 T6 and T8, the most commonly reported “ECM faults” are usually not a truly defective ECM, but engine management warnings caused by software issues, voltage problems or hybrid-related errors. Typical symptoms are an illuminated engine fault light or drivetrain warning, sometimes combined with limp-home-like driving or reduced power. Intermittent faults also occur, where the warning sometimes disappears spontaneously and then returns. In addition, there are often links with a weak 12V battery, moisture or poor contacts in plugs and wiring.
The main causes of recurring ‘ECM faults’ in the Volvo XC60 T6 and T8 in practice are usually not a defective ECM itself, but software issues or outdated ECM calibrations. In addition, voltage problems due to a weak 12V battery, poor or contaminated connectors/wiring looms and moisture or corrosion around plugs regularly cause intermittent faults. Hybrid-related conditions (such as charging or battery problems after standing still for a long time) can also cause fault messages in the drivetrain and ECM. As a result, the fault often returns as long as the underlying cause in voltage, software or wiring is not structurally resolved.
An owner can park the car safely, switch the engine off completely and leave the system without power for a few minutes to see whether the warning disappears after a restart. They can also have the 12V battery tested or check the voltage themselves, and check whether recent software updates or recalls have been carried out. Visual inspection of fuses, plugs and cables around the engine bay for loose connections or visible damage is sometimes useful. If the ECM fault keeps returning or the car goes into limp-home mode, continuing to drive is inadvisable and diagnosis by a garage is necessary.
The costs of an ECM fault in a Volvo XC60 hybrid vary greatly: a simple software update or reset may often cost only a few tens of euros up to around €150, while an extensive diagnosis with labour can reach €200–€400. If the cause lies with the 12V battery, plugs or wiring loom, material costs usually remain limited and most of the expense is labour. Only when the ECM itself or complex hybrid components actually have to be replaced can the costs rise to well over €1,000. Possible repair options include software updates, replacing or charging the 12V battery, cleaning or repairing connectors/wiring, and in extreme cases replacement or reprogramming of the ECM module itself.
Preventively, it helps to keep the 12V battery in good condition and have it tested regularly, because voltage dips often cause vague ECM faults. When servicing, always have it checked whether the latest ECM and hybrid software updates have been installed. Ensure the plugs and wiring looms around the engine bay and control modules are in good condition (cleaning, protection against moisture, timely repair in case of damage). Charge the plug-in hybrid regularly and avoid very long periods of inactivity without charging in order to minimise hybrid- and voltage-related fault conditions.
