Cooling system problems are among the most common causes of car breakdowns and are responsible for almost a quarter of all incidents. A non-functioning cooling fan or coolant leaks can lead to overheating and ultimately costly engine damage. How can you recognise these problems in time and what can you do about them?

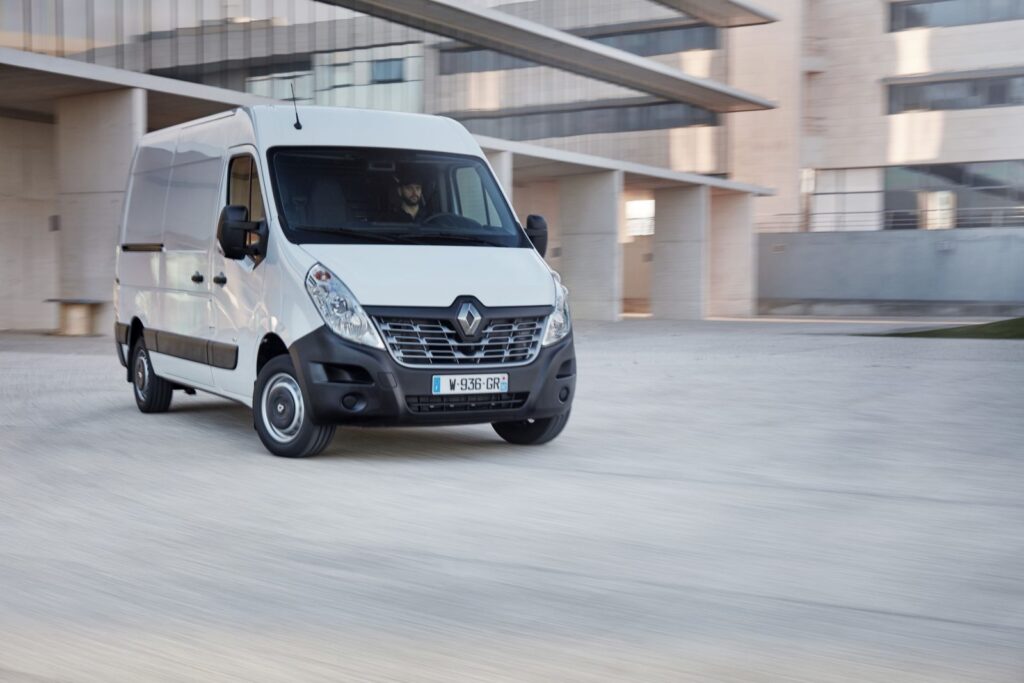

The Renault Master is one of the models for which owners regularly report cooling system problems. These vans are driven daily under tough conditions, which puts extra strain on the cooling system. Symptoms such as a rising engine temperature or loss of coolant require immediate attention.
In this article you will find practical information on recognising cooling system faults, common causes and concrete options for action. You will read which symptoms point to problems and when you need to take action.
Symptoms that indicate cooling system problems
Early warning signs help you avoid expensive repairs. So keep an eye out for these warning signs:
- Rising engine temperature: An uncontrolled rise in temperature indicates poor coolant circulation. Air pockets in the system can also cause this.
- Coolant loss: Having to top up regularly indicates leaks, a faulty radiator cap or swollen hoses
- Fan running continuously: Even at low temperatures, often caused by a faulty thermostat or sensor
- Overpressure or bubbles in the coolant: This may indicate a blown cylinder head gasket, allowing exhaust gases to enter the system
Warning lights for coolant temperature on the dashboard require immediate attention. Do not keep driving when the temperature gauge moves into the red. Park safely and check the system to prevent piston damage or head gasket failure.
‘ Never mix different types of coolant, as this can cause chemical reactions that damage the system. ’
How do you know your car is overheating?
Overheating can reveal itself in several ways. The temperature gauge on the dashboard is your first warning system. When the needle moves towards the red zone, the engine temperature is rising above the normal level.
You may also see steam coming from under the bonnet. This indicates boiling coolant, a sign that the system can no longer cool the engine sufficiently. Owners of vans sometimes report coolant loss of up to 1 litre per 800 kilometres. This indicates high pressure due to a defective head gasket or radiator cap.
A sweet smell in the car may point to leaking coolant. Check whether puddles appear under the car after parking. Do you have to top up regularly without seeing any visible leak? Then the pressure valve in the cap needs to be inspected.
Where do you check the coolant level?
The coolant reservoir is usually located at the side of the engine bay. It is a semi-transparent plastic tank with minimum and maximum level markings. Always check the level with a cold engine to avoid burns.
The level should be between the min and max marks. If it is below the minimum, top up with the correct type of coolant for your model. Never mix different types of coolant, as this can cause chemical reactions that damage the system.
Common causes of cooling system failures
Many problems arise from neglect or incorrect maintenance. The following causes occur regularly:
- Air in the system: After filling or due to leaks, air can disrupt flow and cause uneven pressure
- Incorrect or old coolant: Acidification leads to rust and limescale deposits. Silicates can also cause blockages.
- Defective components: A radiator cap that does not regulate pressure properly, a thermostat that does not control the flow, or split hoses
- Oil contamination: With a blown head gasket or oil cooler, oil enters the system. This damages hoses and seals.
- Contamination: Rust, limescale or residues from stop-leak products can clog the system
Defective components often result from normal wear and tear. Hoses harden over time and can swell, causing them to crack. The thermostat can get stuck in the closed position, preventing coolant from flowing through the radiator.
What to do if the cooling fan is not working?
A cooling fan normally runs when the engine reaches a certain temperature. If the fan does not come on while the engine is getting hot, there can be several causes.
First check the cooling fan fuse in the fuse box. A blown fuse is quick to replace. A faulty temperature sensor or a broken fan motor can also cause the problem.
If the fan is defective, you must act immediately. While waiting for repairs, drive only short distances at low speed and switch the heater to maximum. This helps dissipate heat. Have the fan replaced as soon as possible to prevent engine damage.
Fan replacement and costs
Replacing a cooling fan is a relatively straightforward repair. The fan is usually mounted in front of or behind the radiator and is secured with a few bolts. The costs vary depending on the model and whether you choose an original or universal part.
Also have the thermostat checked when replacing the fan. These components work together and it is often more efficient to replace both at the same time. Ask the mechanic to bleed the system thoroughly after the repair.
Practical tips for maintenance and repair
Good maintenance significantly extends the life of the cooling system. Follow this advice to prevent problems:
- At every service, check the coolant level, antifreeze protection and any leaks
- Flush and bleed the system thoroughly after every repair or coolant change
- When replacing a radiator, also replace the thermostat, valves and filler cap for optimum operation
- Inspect hoses regularly and replace hardened or swollen ones immediately
- Test the pressure valve in the cap if there is coolant loss without visible leaks
If there is oil contamination in the cooling system, use a degreaser. Fill the system 10% with cleaner and top up the rest with water, after you have resolved the cause of the contamination. Run the engine according to the cleaner’s instructions and then flush thoroughly.
Bleeding is a common mistake that can lead to engine damage. Are you replacing coolant or components? Then air pockets often remain in the system. These air pockets disrupt circulation and cause local overheating.
Consequences of delayed maintenance
Do not ignore signs of cooling system problems. Overheating leads to head gasket failures, piston damage and loss of compression. These repairs are significantly more expensive than preventive maintenance on the cooling system.
A blown cylinder head gasket occurs when the head and block expand due to extreme heat. Water can enter the cylinders and oil can mix with coolant. This often requires removal of the cylinder head and sometimes even replacement.
Piston damage occurs at very high temperatures when the metal components deform. In severe cases the engine can seize. Regular checks and maintenance prevent these costly scenarios.
When should you go to the garage?
You can carry out some checks yourself, but certain repairs require professional help. Go to the garage if you have:
- Persistently high temperatures despite topping up coolant
- White smoke from the exhaust, which indicates water in the cylinders
- Oil in the coolant or coolant in the oil
- A defective thermostat or water pump
- Suspicion of a blown cylinder head gasket
A mechanic can pressure test the system to detect hidden leaks. This test shows whether hoses, the radiator or the head gasket are leaking. Modern diagnostic systems can also check temperature sensors and the thermostat.
On the Carnews website you will find extensive information about different car makes and their specific problems. Discover more articles about maintenance, common faults and practical tips to keep driving your car worry-free for longer.
Frequently asked questions
Warning signs of a cooling system problem include a rising engine temperature, a cooling fan that runs continuously, visible or ongoing coolant loss and bubbles/overpressure in the expansion tank. Having to top up coolant frequently or traces of leakage around hoses, radiator or cap are also clear indicators. If these signs are ignored, the engine can overheat, causing head gasket failures, piston damage and warping of the cylinder head or block. This leads to greatly reduced engine performance, higher fuel consumption and a significantly shortened engine life.
The most common causes of cooling system problems are leaks (hoses, radiator, cap), air in the system, ageing or incorrect coolant, a defective thermostat/radiator cap and contamination/rust in the system. Preventive maintenance consists of regularly checking coolant level and quality, looking out for leaks and damaged hoses and flushing and filling on time with the specified coolant without mixing different types. After every intervention in the cooling system, it must be carefully bled to prevent air pockets. It is also sensible to replace the thermostat, cap and vulnerable rubber parts preventively at intervals.
Under intensive or sporty use, check the coolant level, the correct specification of the fluid and the entire system for leaks more frequently. Have the cooling system flushed and properly bled in time to prevent air pockets and blocked passages. Regularly inspect hoses, radiator cap and thermostat and replace hardened, swollen or defective parts as a precaution. Stop driving immediately if the engine temperature rises to prevent severe engine damage from overheating.
A car enthusiast can first check the coolant level (only with a cold engine) and see whether the fluid is clear and at the correct level. Then visually check for leaks around the radiator, hoses, clamps and under the car, and feel whether hoses are hard, swollen or split. While driving, keep an eye on the engine temperature gauge and whether the cooling fan switches on when the engine is warm. After topping up or working on the system, it is important to bleed it according to the instructions, as air pockets can lead to overheating.
