Starting problems and starter jamming on the Citroën C3 Picasso call for a focused diagnosis: an engine that does not turn over usually has a different cause from one that cranks but will not start. A BSI reset can clear a temporary electronic fault, but it will not fix a weak battery, worn starter motor or poor earth cable. First learn to recognise the car’s sound and behaviour, then you can avoid replacing parts unnecessarily.

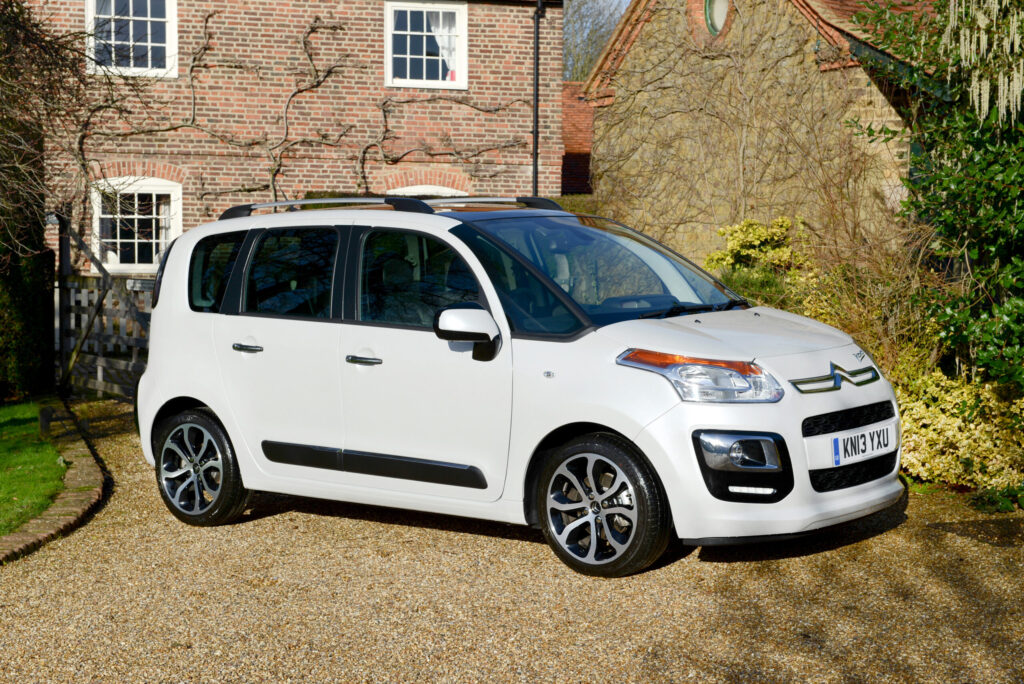

Citroën C3 Picasso won’t start, starter motor faulty?
With a Citroën C3 Picasso with known starting problems, the starter motor is not automatically the culprit. So listen carefully to what happens when you turn the key to the start position. No sound at all, one heavy click, rapid rattling or a slowly turning engine each point in a different direction.
The first question is simple: does the crankshaft turn? If the starter motor does not turn the engine over, the problem usually lies with the power supply, the starter control circuit or the starter itself. If the engine does turn at normal speed but still will not start, then investigate the immobiliser, crankshaft sensor, fuel supply or ignition.
According to the Citroën handbook, after an unsuccessful start attempt you should switch off the ignition and wait a few seconds. Repeated and prolonged cranking puts heavy strain on the battery and starter motor. This is especially relevant on an older C3 Picasso with Stop & Start.
What does the sound during starting mean?
The following signs help narrow down the fault:
- No click and no reaction: check the battery, battery terminals, fuses, starter relay, ignition switch and BSI control.
- One distinct click: think of a weak battery, poor earth connection, solenoid or a starter motor that is seizing.
- Rapid rattling: the battery voltage is dropping too far or a battery terminal has a poor connection.
- The starter turns slowly: measure voltage drop in the positive cable and earth cable.
- The starter turns, but the engine will not start: check key recognition, crank signal, fuel and ignition.
- A grinding noise: have the ring gear, Bendix and starter motor checked before further damage occurs.
A heavy click is not proof that the starter motor is defective. The solenoid, the electromagnetic switch on the starter, may respond while the battery is not supplying enough current to turn the engine over.
‘ That is why testing is better than replacing parts straight away. ’
Recognising starter jamming on the C3 Picasso
Starter jamming means the starter motor sticks, turns heavily or does not come properly out of the flywheel ring gear. The Bendix is the mechanism that pushes the starter motor gear into the ring gear during starting. Wear or contamination can cause this mechanism to stop working properly.
On a Citroën C3 Picasso, worn carbon brushes, burnt contacts in the solenoid, cable resistance or a poor earth can cause the same symptom as a mechanically faulty starter. That is why testing is better than replacing parts straight away. A tap on the starter motor can sometimes make worn carbon brushes make contact temporarily, but that is not a repair method and can cause damage.
When should you stop trying to start it immediately?
If the starter motor keeps running after you have released the key, switch off the ignition and have the car checked. A sticking relay or a solenoid that remains stuck on can overheat the starter. On certain 2016 vehicles, according to official recall information, there was an action concerning a starter motor relay in which an internal part could fall outside specification. Always check the recall status using the VIN.
A burning smell, smoke in the engine bay or markedly dimming interior lights are also reasons not to keep trying. The fault may then be in the starter, but it may also be in a cable connection with high resistance.
Common causes of starting faults on the C3 Picasso
The C3 Picasso was offered with, among others, 1.4 and 1.6 petrol engines and the 1.6 HDi diesel. The basic checks remain the same, but the follow-up steps differ by engine variant. On the 1.6 HDi, sufficient cranking speed is especially important: if the starter turns too slowly, rail pressure during starting may stay too low for the diesel to start.
The most logical order of checks is:
- Measure battery voltage after a few hours standing. A conventional fully charged 12V battery usually reads around 12.6 volts.
- Measure the voltage while starting. A sharp drop points to a weak battery, poor terminal connection or a heavy internal load.
- Check the negative terminal, the earth cable to the body and the earth connection to the engine block.
- Measure the voltage drop on the positive cable to the starter motor during a start attempt.
- Check whether the thin control wire on the starter motor receives voltage when you start.
- Read the BSI and engine ECU with PSA-compatible diagnostic equipment.
If the starter motor is receiving a good start signal and the supply is in order, but nothing happens, then the solenoid and starter motor become suspicious. If the start signal is missing, first investigate the relay, fuse box, ignition switch and any clutch or neutral switch.
Engine turns over but the C3 Picasso will not start
When the starter spins the engine freely, a new starter motor will not help much. Then look at the electronic immobiliser. The transponder in the key must be recognised before the engine management system allows starting. A fault can show itself through a key or immobiliser message, an engine that cuts out immediately, or a car that starts with the spare key.
If in doubt, try the spare key. If that works, then it makes sense to investigate the key being used or key recognition. If neither key works, the BSI, the car’s electronic control unit, needs to be read out.
A crankshaft sensor is another suspect when the engine turns over well but will not start. The engine ECU uses this signal to determine the crankshaft position and speed. If the signal drops out, ignition and injection may not occur. Check with diagnostic equipment whether engine speed is being registered during starting.
How do I reset a C3 Picasso starting problem?
A BSI reset can help after the battery has gone flat, after voltage problems or when electronic functions behave illogically. Do not see the reset as a solution for a mechanical fault. A seized Bendix, poor earth cable or defective crankshaft sensor will not be cured by disconnecting the battery.
Carry out a battery disconnection calmly and in accordance with the vehicle procedure. The steps are:
- Switch off windows, lights, ventilation and other consumers.
- Switch off the ignition, remove the key and close all doors.
- Wait a few minutes so the BSI can enter its rest mode.
- Disconnect the negative terminal of the battery first.
- Wait before carrying out any further work.
- Reconnect the battery and wait again before switching on the ignition.
- Switch on the ignition, wait briefly and then start the engine.
According to the Citroën manual, caution with battery disconnection is important because the on-board electronics need time to shut down and reinitialise. On a C3 Picasso with Stop & Start, the correct battery type must also be fitted. A battery with the wrong technology or capacity can cause charging problems and Stop & Start warnings.
‘ Replace the starter only when the battery remains healthy under load, the cables show little voltage loss and the starter is being commanded correctly. ’
Targeted testing prevents unnecessary repairs
You can solve a starting problem on the Citroën C3 Picasso most quickly by checking voltage, earth and the start signal in that order. Replace the starter only when the battery remains healthy under load, the cables show little voltage loss and the starter is being commanded correctly. If the engine does turn over, attention shifts to key recognition, the crankshaft sensor and fuel or ignition control.
On Carnews you will find much more information about Citroën faults, battery problems, Stop & Start systems and common technical issues by model. Discover more on the website and compare the symptoms of your car with the detailed model articles.
Frequently asked questions
A burnt-out solenoid is an electrical fault: the electromagnet or contacts no longer engage the starter motor, often resulting in little more than a click. A seized starter motor is mechanically blocked, for example by a stuck rotor, Bendix or damaged ring gear, and often draws a lot of current without turning. In high-performance engines the principle is the same, although higher compression and thermal loading can make the symptoms worse.
Early thermal soak is recognised mainly by temperature-related starting problems: after a hot drive the starter motor gives one click, turns slowly or does nothing at all, while cold starts are normal. The fault often appears after a few minutes standing, when heat from the exhaust, turbo or manifold soaks into the starter motor, and then disappears again once it has cooled. Confirm this by comparing cold and hot starts and, while starting, measuring battery voltage and voltage drop across the positive and earth cables, so that a weak battery or poor connection is ruled out.
A high-torque starter motor can demand a higher peak current, which means the battery, relay, fuses, wiring and earth connections must be rated accordingly. Otherwise voltage drop, overheating and faults in sensitive racing electronics can occur. On the other hand, it starts the engine more quickly and reliably, often shortening the overall cranking time.
Voltage drop in aftermarket wiring reduces the voltage that reaches the starter relay and solenoid. As a result, the relay may fail to pull in, may only click or may rattle rapidly, while the starter turns slowly or not at all. High cable or contact resistance can also cause heat build-up and unreliable, intermittent starting problems.
Compare cold and hot starts to see whether the engine does not turn over, turns slowly or turns normally but will not fire. With the engine hot, measure battery voltage, voltage drop across the positive and earth cables, and the voltage on the starter motor control wire while starting. If the control signal is correct but the starter still sticks or turns heavily, check the solenoid, carbon brushes, Bendix and flywheel ring gear; if it turns normally but the engine will not start, focus on the crank signal, fuel pressure and ignition/injection.
